RightTemp® Temperature Monitoring & Homeothermic Control Module

The RightTemp Temperature Monitoring and Homeothermic Control system allows you to accurately monitor and maintain mouse body temperature. Simply set your desired core body temperature and the system will automatically control the warming pad so the animal’s core temperature never goes above or below your set temperature. There aren’t any hot spots like you see with traditional warming pads.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

Features & Benefits

  • Far Infrared Warming
  • Penetrates deep within the body to safely warm the animal
  • Automatic Control
  • Self-regulate your animal’s temperature
  • Configure Up to 5 Safety Alarms
  • Respond quickly to changes in temperature

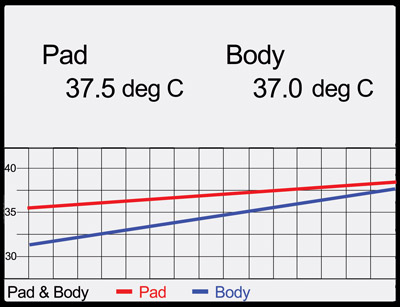

  • Customizable Display
  • Chart and view temperature readings for both pad and animal
  • See the last 5 readings on the main screen
  • Upload data to your computer
  • Output data for use with strip chart software
  • Includes 1 Far Infrared Warming Pad, 8″ x 10″
  • With a 10-pack of disposable sleeve protectors
  • Includes 2 Temperature Sensors (Rectal Probes)
  • Warm with or without sensors


About Far Infrared (FIR) Warming

The pads warm the animal through far infrared (FIR) warming. Far infrared light is absorbed by cells deep within the body of the animal which safely raise the core body temperature. FIR light warms the body without warming the air between the FIR source and the body. FIR is totally safe; in fact, 80% of the sun’s rays are in the low energy, far infrared range. FIR waves resonate with organic matter and penetrate deep into the body. The energy level of water in the body’s cells is gently increased through “resonant absorption” warming the inside of the body. The body can absorb as much as 90% of FIR heat compared to only 20% with conventional warming pads. Studies have shown that FIR can maintain therapeutic temperatures longer when compared with conventional heating methods. Less mouse warming is required with FIR than with conventional techniques. FIR allows researchers to safely warm animals for a longer period of time without unknowingly overheating the animal. Your animal can now be warmed over an extended period of time without having to constantly increase the temperature. No hot spots like you see with traditional warming pads.

FIR warming increases body metabolism, thereby discharging anesthetics and toxins, which aid in faster recovery from surgery.

The Multi-Functional Controller Provides 3 Options for Use:

  • Control/maintain core body temperature by using both sensors (rectal probes)
  • Set desired pad temperature using the pad sensor only
  • Adjust pad temperature by changing the percentage of power to the pad using no sensors


Far Infrared Warming: Product Selection Guide

Warming Pad Control RightTemp® Jr. Homeothermic Control PhysioSuite® RightTemp® with Advanced Features
Small footprint; easily fits into your surgical set-up Automatic control measures and regulates your animal’s temperature Temperature monitor and homeothermic control module
Large display; easily set and identify target temperature Includes temperature sensor Modular physiological monitor system
Operates using AC power Far infrared warming pad provided Optional Modules for ventilation, end-tidal CO2, pulse oximetry and heart rate monitoring

Support Documents

PhysioSuite Brochure
SomnoSuite and PhysioSuite Publications
Whitepaper: Monitoring Vital Signs of Laboratory Mice and Rats During Surgery

Resistance 2252 ohm
Tolerance +/– 0.2° C
Accuracy 25°C to 45°C
Operating Temp. –40°C to 80° C
Sensor Diameter Ball Tip Diameter: 1.65 mm max
Shaft: 1.5 mm
Time Constant 10.0 seconds
Dissipation Constant 0.75 m/W (° C)
