106 Microdialysis Pump

Portable, small and light weight
Easy to handle
Self controlled with function signals
Dedicated for clinical routine microdialysis

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.
  • Please indicate the name of your University or company

M Dialysis 106 Microdialysis Pump

  • Portable, small and light weight
  • Easy to handle
  • Self controlled with function signals
  • Dedicated for clinical routine microdialysis

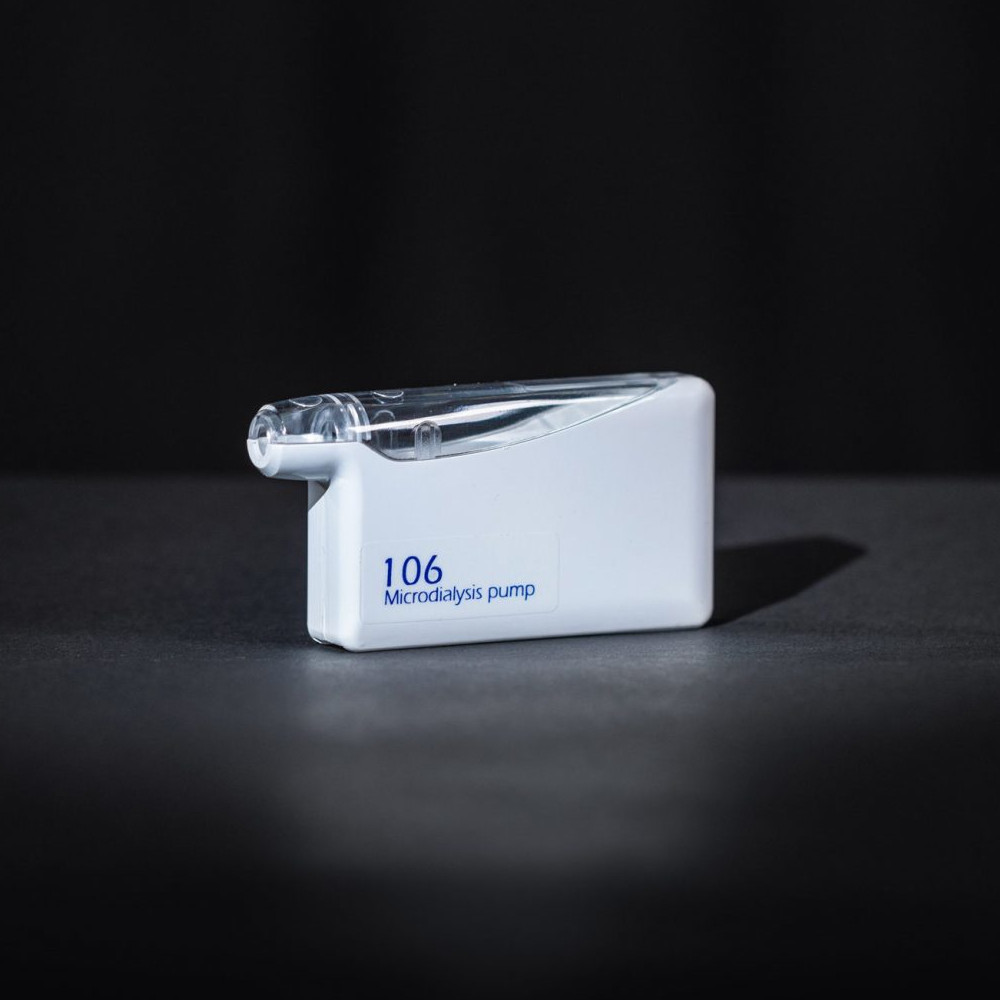

The 106 Microdialysis Pump is specially developed to function together with Microdialysis Catheters. It is a portable, battery-driven, micro-processor controlled syringe pump which is very easy to use.

The 106 syringe is filled with 2.5 mL of a sterile perfusion fluid and connected to the Microdialysis Catheter which is placed into the pump.

Fixed flow rate
The pump starts when the lid is closed. To reduce the time for filling the system, the pump will start perfusing at a high flow rate of 15 µL/min during the first 5 minutes. Thereafter the flow rate automatically decreases to 0.3 µL/min.

The pump is self-controlled during the whole process. Green and red LEDs indicate the status; green for normal function and red indicating malfunction. The LEDs are located under the transparent lid in the “nose” of the pump, enabling the user to easily overview the function.

Small and lightweight
The pump is small, with rounded corners and is lightweight. It can be fixed to a belt or carried in a pocket of an ambulant patient. During surgery the pump can be kept sterile by simply dropping it in a sterile glove or plastic bag.

Ordering information for 106 Microdialysis Pump

Ref. No.
P000003 106 Microdialysis Pump


Accessories:

8010191 106 Syringe 20/pkg
8001788 Battery 2x3V for 106 &107 MD Pump
P000034 Perfusion Fluid T1, 5 mL, 10/pkg
P000151 Perfusion Fluid CNS, 5 mL, 10/pkg
8003790 MD Pump Kit, Peripheral
8003791 MD Pump Kit, Brain Tissue



Product Downloads

Product Note
User Manual
