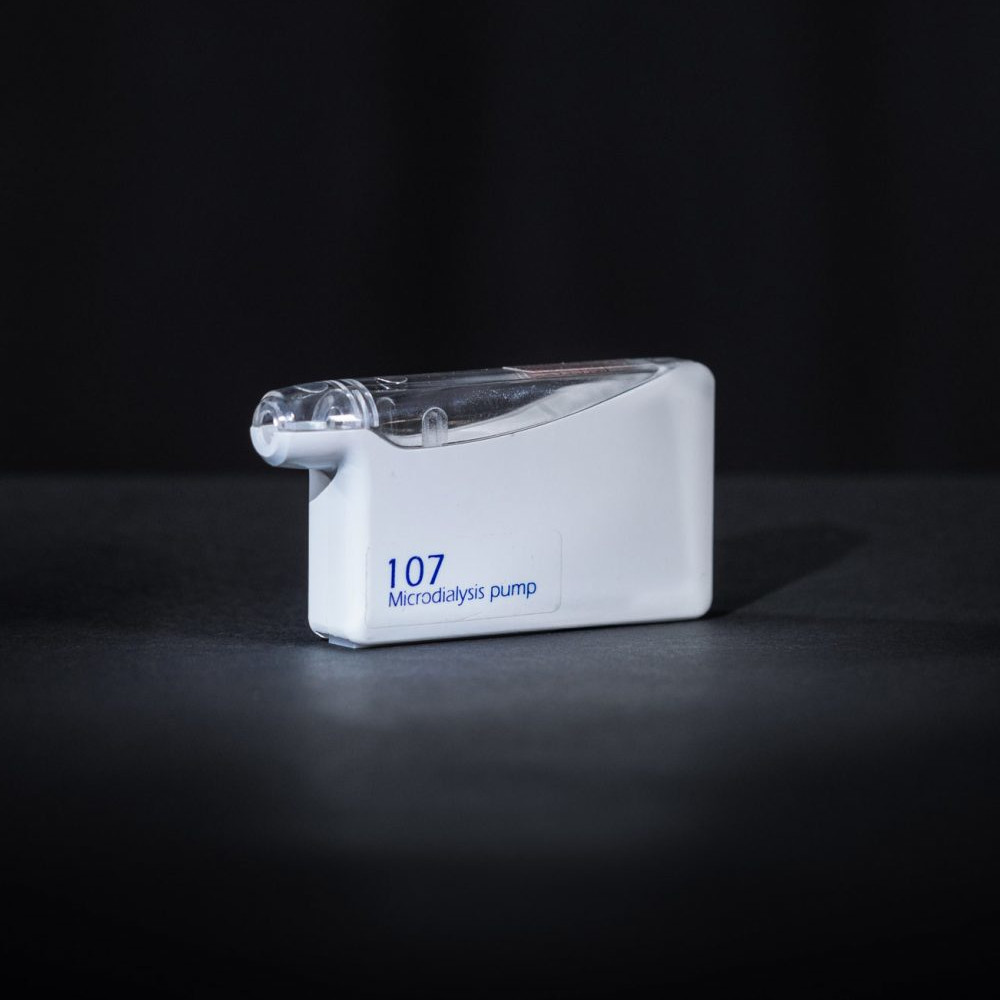

107 Microdialysis Pump

Easily adjusted in different flow rates from 0.1-5 µL/min
Portable, small and lightweight
Self-controlled with LED function signals
Simple to handle

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.
  • Please indicate the name of your University or company

M Dialysis 107 Microdialysis Pump

  • Easily adjusted in different flow rates from 0.1-5 µL/min
  • Portable, small and lightweight
  • Self-controlled with LED function signals
  • Simple to handle

The 107 Microdialysis Pump is a portable battery-driven pump and very easy to use. The 106 pump syringe is filled with 2.5 mL of sterile perfusion fluid, connected to the microdialysis catheter and then placed in the pump. When the pump lid is closed, a 5-minute flush cycle begins and is followed by an automatic decrease to the pre-set operating rate.

Flexible Flow Rates

The pump has a flexible flow rate that enables the user to change the flow for different purposes: low flow rate for high recovery of low molecular weight substances in a tissue, or high flow rate for blood flow measurements and for more frequent sampling intervals.

The operating flow is adjustable to eight different settings: 0, 0.1, 0.2, 0.3, 0.5, 1.0, 2.0 and 5.0 µL/min by adjusting the dial on the pump.

Ordering information for 107 Microdialysis Pump

Ref. No.
P000127 107 Microdialysis Pump


Accessories:

8010191 106 Syringe 20/pkg
8001788 Battery 2x3V for 106 &107 MD Pump
P000034 Perfusion Fluid T1, 5 mL, 10/pkg
P000151 Perfusion Fluid CNS, 5 mL, 10/pkg
8003790 MD Pump Kit, Peripheral
8003791 MD Pump Kit, Brain Tissue



Product Downloads

Product Note
User Manual
