Tubing Couplers and Plugs

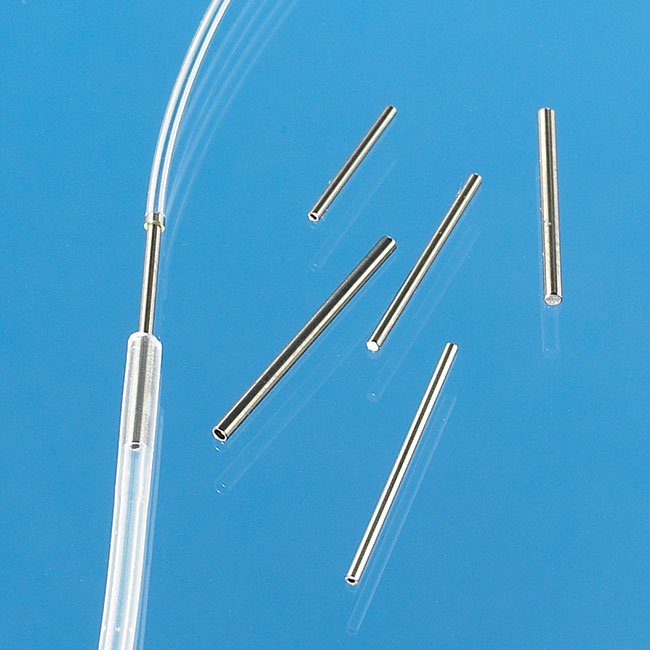

Couplers are used to connect catheters to external infusion tubing. Stainless steel plugs may be used to seal off a catheter before an infusion experiment begins. Straight couplers and plugs are available in non-sterile packages of 100, or or request they may be ordered sterile either individually packaged or as part of pre-assembled infusion kits.

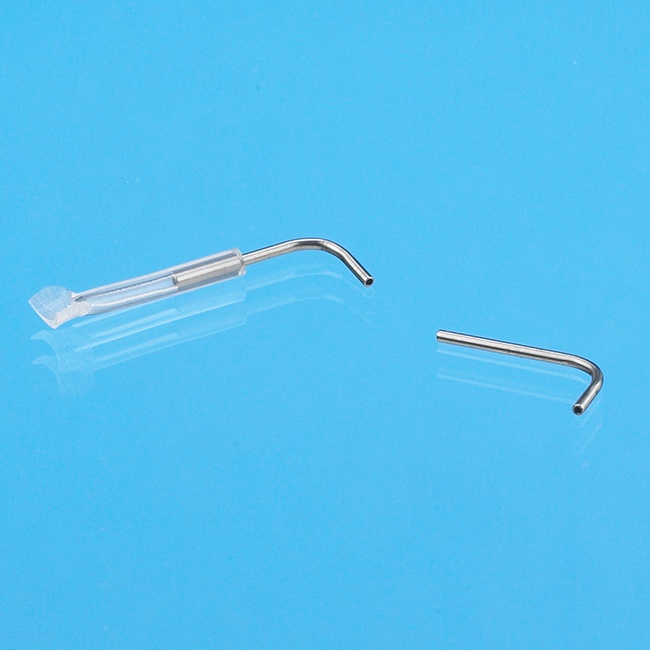

Right angle couplers are available in 22ga and are bent to a 90 degree angle. One side is approximately 11mm, the other 5mm. Provided sterile with a sealed segment of tubing to close off one end.

Note: the PinPort™ replaces plugs for faster and cleaner access to externalized catheters. Contact Linton Instrumentation for a free sample.

Features and Benefits

  • Stainless steel
  • Edges rounded to prevent damage to tubing



Ordering Information

Part No. Description Qty
SC17/15 Stainless steel catheter coupler, 17ga x 15mm, non-sterile pkg of 100
SC20/15 Stainless steel catheter coupler, 20ga x 15mm, non-sterile pkg of 100
SC21/12 Stainless steel catheter coupler, 21ga x 12mm, non-sterile pkg of 100
SC22/15 Stainless steel catheter coupler, 22ga x 15mm, non-sterile pkg of 100
SC22/8 Stainless steel catheter coupler, 22ga x 8mm, non-sterile pkg of 100
SC23/8 Stainless steel catheter coupler, 23ga x 8mm, non-sterile pkg of 100
SC25/10 Stainless steel catheter coupler, 25ga x 10mm, non-sterile pkg of 100
SC27/8 Stainless steel catheter coupler, 27ga x 8mm, non-sterile pkg of 100
SP20/12 Stainless steel catheter plug, 20ga x 12mm, non-sterile pkg of 100
SP22/12 Stainless steel catheter plug, 22ga x 12mm, non-sterile pkg of 100
SP23/12 Stainless steel catheter plug, 23ga x 12mm, non-sterile pkg of 100
SP25/12 Stainless steel catheter plug, 25ga x 12mm, non-sterile pkg of 100
SC22/15RA Right angle stainless steel coupler, 22ga x 15mm, sterile each
