Sensory evaluators

These portable sensory evaluators are manufactured within a 5% standard deviation of each target force.

Use to test sensory levels and obtain objective data for accurate reporting on the status of diminishing or returning sensibility.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

NCM logo

These portable sensory evaluators are manufactured within a 5% standard deviation of each target force.

  • Use to test sensory levels and obtain objective data for accurate reporting on the status of diminishing or returning sensibility.
  • The filament bends when peak force threshold is reached.

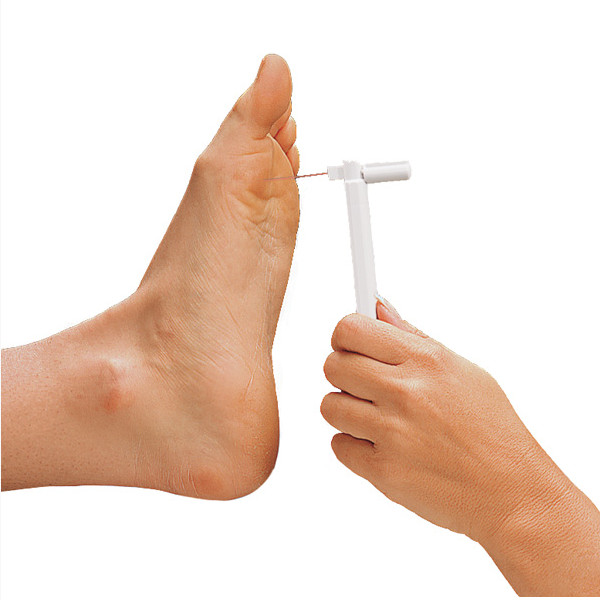

  • The unique handle easily opens to a 90° angle for testing. When closed, the Sensory Evaluator can be carried safely in a pocket or carrying case, protecting the filament when not in use.
  • Finger indentations on the handle provide a firm, comfortable hold.
  • The Sensory Evaluator handles are marked with the corresponding color-coded pressure level.
  • Individual replacement Sensory Evaluators are sold separately, including the 5.07, which indicates loss of protective sensation for foot.
  • Available in a 5 Piece Hand Kit, a 6 Piece Foot Kit and a 20 Piece Full Kit.
  • Each kit comes in a protective case. Instructions are included.
  • Free journal articles are available.

Evaluation results can be recorded on the Hand Screening Forms or Foot Screening Forms.

A History of Monofilaments

In 1960 Josephine Semmes and Sidney Weinstein developed the modern monofilament. Later, the levels of force applied by different monofilaments were correlated to levels of decreased sensory function. In 1987, The Journal of Hand Surgery published “The Repeatability of Testing with Semmes-Weinstein Monofilaments” by Judith Bell-Krotoski and Elizabeth Tomancik of the Gillis W. Long Hansen’s Disease Center. This study validates the use of Semmes-Weinstein monofilaments as a repeatable and reliable test of sensibility. The study concludes that “the filaments are a controlled, objective, reproducible force stimulus available for use in clinical testing of peripheral nerve function,” (161).

References

Care of the Foot in Diabetes…the Carville Approach, Bureau of Primary Health Care, Vienna, VA.

Bell-Krotoski OTR, FAOT, FAOTA, Judith and Elizabeth Tomancik LOTR. 1987. “The Repeatability of Testing with Semmes-Weinstein Monofilaments.” The Journal of Hand Surgery, 12A:155-161.

Caputo MD, Gregory M. et al. 1994. “Assessment and Management of Foot Disease in Patients with Diabetes.” New England Journal of Medicine, 331:854-860.

Duffy MD, John C. and Charles A. Patout Jr. MD. 1990. “Management of the Insensitive Foot in Diabetes: Lessons Learned from Hansen’s Disease.” Military Medicine, 155:575-579.

Hunter MD, James M., et al., eds. 1995. Rehabilitation of the Hand: Surgery and Therapy, Fourth Edition, 1:585-593.
