SomnoFlo™

Low-flow electronic vaporizer

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

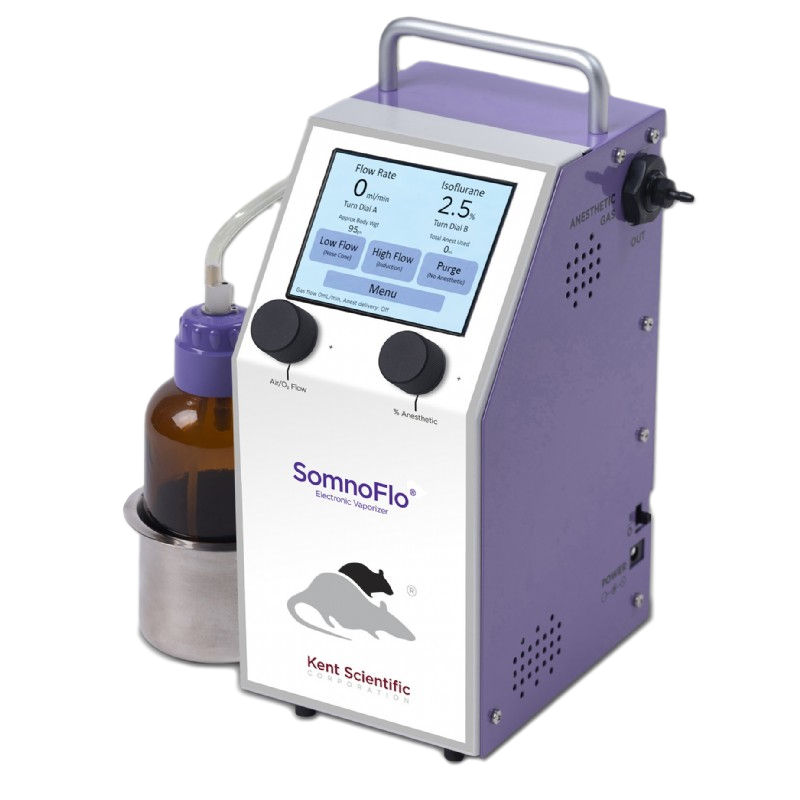

The SomnoFlo® is a compact, standalone vaporizer that uses either ambient air with an internal air pump or compressed gas. It delivers only the anesthetic required by the animal according to its weight with flows down to 0.05 LPM.

NO MORE USING HUMAN AMOUNTS OF ANESTHETIC FOR A MOUSE!

SomnoFlo® is a low-flow electronic vaporizer with an automated delivery system. Just connect your anesthetic bottle directly to SomnoFlo and the system is ready for your procedure.

System Includes

  • Integrated touch-screen display
  • Internal 100 mL anesthetic bottle compartment
  • External 250 mL bottle connection and holder
  • Anti-spill, anti-vapor bottle top adapter
  • Two accessory adapter
  • WAG canister and holder
  • 1-Year 100% Parts & Labor Standard Warranty



Anaesthetic Delivery System

100ml setup 250ms setup

SomnoFlo draws anesthetic directly from the 100mL bottle within the unit with easy access, while 250mL bottles are placed in a convenient holder outside the vaporizer.

Features

Extreme Precision & Accuracy, Flow Rates as Low as 50mL/min Just right for mice and other small animals
Ambient Air or Compressed Gas Saves time, increases accuracy, decreases WAG
Less Waste Gas Exposure Increases user safety
Automated Anesthetic Delivery System Ensures precision to 0.1%
No Annual Calibration or Certification Provides for reproducible and uninterrupted studies



Operates With Ambient Air or Compressed Gas

Setup comparison



Intuitive Touchscreen Control

Intuitive Touchscreen Control

Easy to follow controls on SomnoFlo’s touchscreen display ensure simple, intuitive operation.




SomnoFlo setup with warming

Carrier Gas Flow Rate:
Range 50mL/min to 1L/min
Setting mL/min with display of the corresponding animal weight
Sensor Electronic Gas Flow Sensor to automatically control anesthetic delivery



Operation:
Modes Ambient air from internal compressor or external compressed gas
Anaesthetic Compatible with both isoflurane and sevoflurane
Presets User settable
Flush Yes
Maintenance No annual calibration
