RotaRod Enlargers and Complex Wheels
Enlargers and complex wheels for RotaRods to change the complexity of the experiment. Enlargers increase rod diameter and offer the option to change the surface from grooved to smooth. Complex wheels add complexity thanks to the asymmetrical and adjustable rungs which increase the test sensitivity and add a higher involvement of motor cortex and hippocampus.
Product Enquiry
If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.
Product Enquiry
Product Enquiry
Please fill out the form if you would like to enquire about this product."*" indicates required fields
To change the complexity of the experiment, sets of enlargers and complex wheels are available for all models of RotaRod.

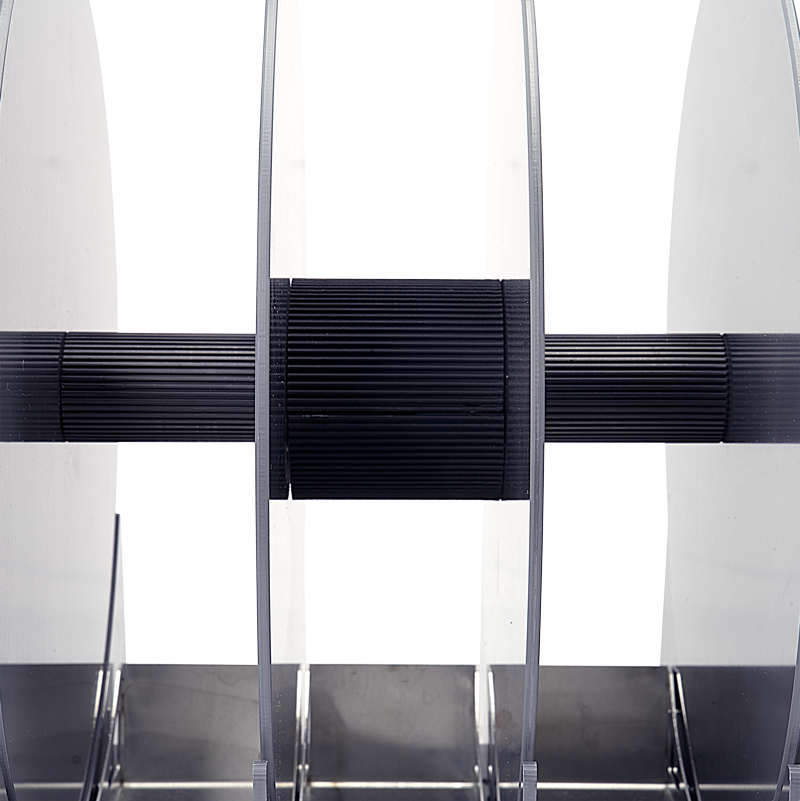

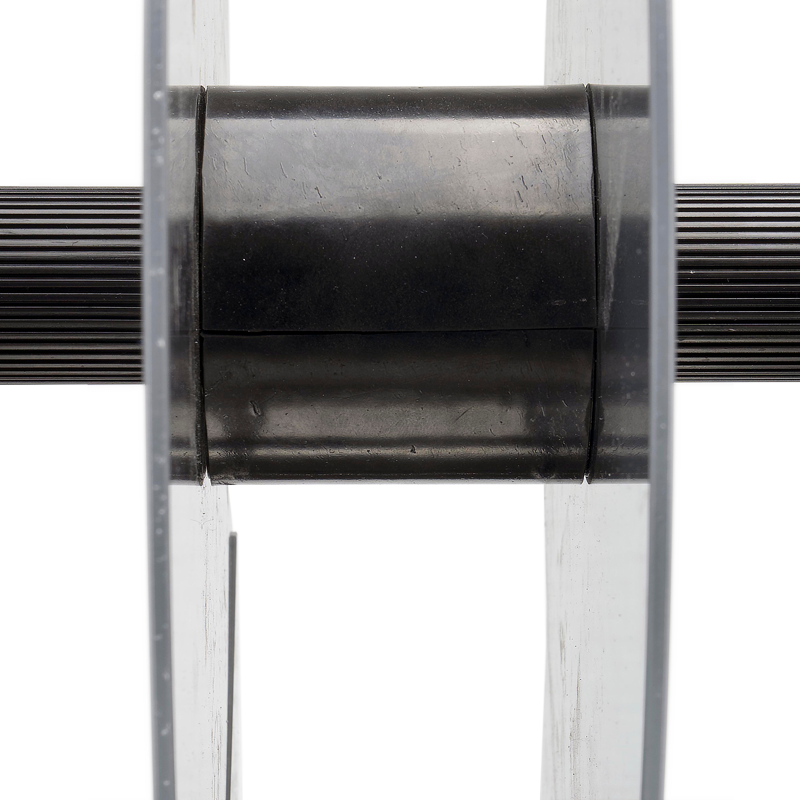

Enlargers increase the diameter of the rod and offer the option to change to a smooth surface from a grooved one and can be easily added using magnetic fixings.

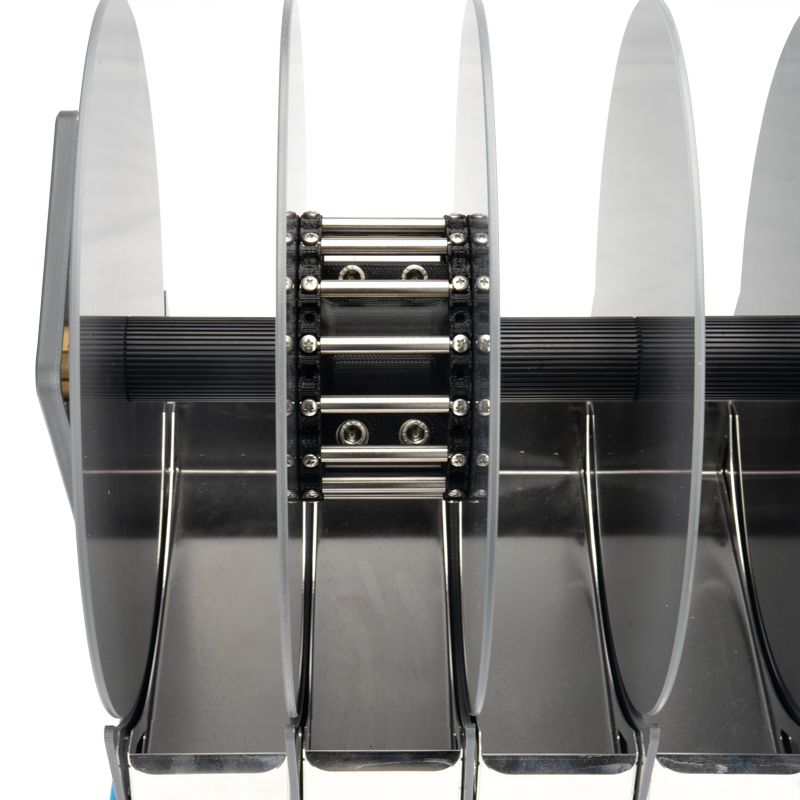

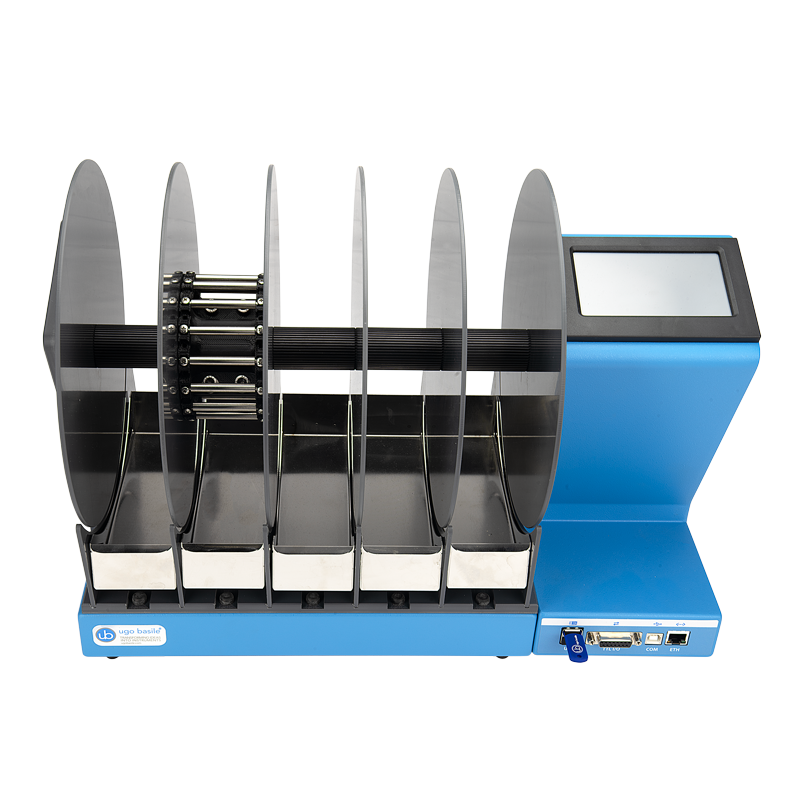

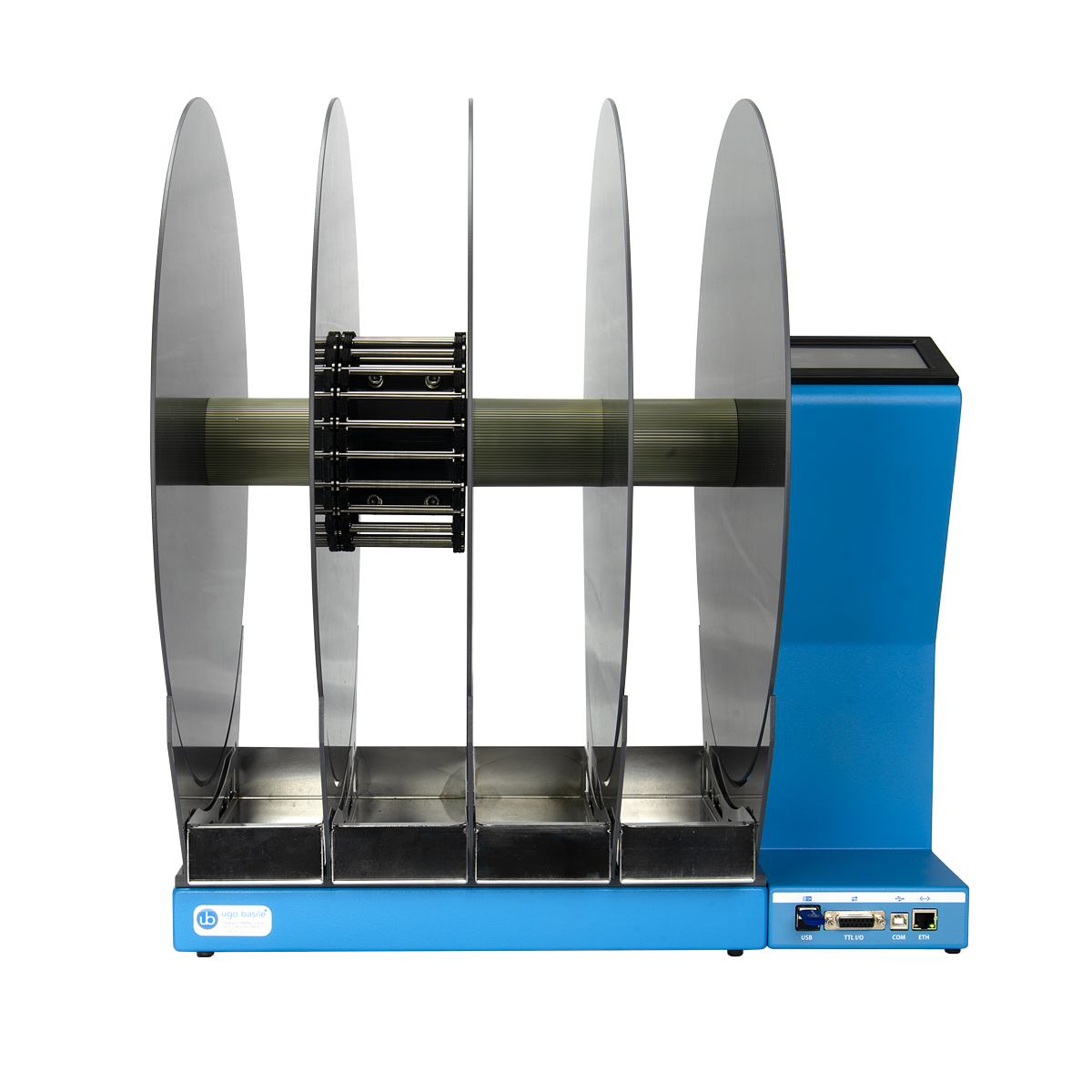

The complex wheel add-on introduces an additional complexity element for the animal to be tested thanks to the asymmetrical and adjustable rungs which increase the test sensitivity and add a higher involvement of motor cortex and hippocampus, as compared to the classic RotaRod test.
Ordering Information
| 47650-325 | Mouse RotaRod black enlarger with grooves, 60 mm diameter instead of original 30 mm (5 pieces set, magnetic fixing). (suitable for Mouse RotaRod SKU 47650). |
| 47650-326 | Mouse RotaRod black enlarger with rubber (smooth), 60 mm diameter instead of original 30 mm (5 pieces set, magnetic fixing). (suitable for Mouse RotaRod SKU 47650). |
| 47650-327 | Mouse RotaRod Complex Wheel (30 bars) (suitable for Mouse RotaRod SKU 47650). (suitable for Mouse RotaRod SKU 47650). |
| 47750-325 | Rat RotaRod black enlarger with grooves, 120 mm diameter instead of original 60 mm (4 pieces set, magnetic fixing). (suitable for Rat RotaRod SKU 47750; not suitable for Large Rat RotaRod SKU 47750-D01). |
| 47750-326 | Rat RotaRod black enlarger with rubber (smooth), 120 mm diameter instead of original 60 mm (4 pieces set, magnetic fixing). (suitable for Rat RotaRod SKU 47750; not suitable for Large Rat RotaRod SKU 47750-D01). |
| 47750-327 | Rat RotaRod Complex Wheel (22 bars) (suitable for Rat RotaRod SKU 47750; not suitable for Large Rat RotaRod SKU 47750-D01). |
| 47750-D01-325 | Large Rat RotaRod black enlarger with grooves, 120 mm diameter instead of original 80 mm (4 pieces set, magnetic fixing). (suitable for Large Rat RotaRod SKU 47750-D01; not suitable for Rat RotaRod SKU 47750). |
| 47750-D01-326 | Large Rat Rota-Rod black enlarger with rubber (smooth). 120 mm diameter instead of original 60 mm (4 pieces set, magnetic fixing). (suitable for Large Rat RotaRod SKU 47750-D01; not suitable for Rat RotaRod SKU 47750). |
| 47750-D01-327 | Large Rat RotaRod Complex Wheel (26 bars). (suitable for Large Rat RotaRod SKU 47750-D01; not suitable for Rat RotaRod SKU 47750). |
Main References
Nagai et al. 2017, “Sleep consolidates motor learning of complex movement sequences in mice“; Sleep, 40 (2).
Enlargers
| Mouse | Rat | Large Rat | |
| Original diameter | 30mm | 60mm | 80mm |
| Enlarged diameter | 60mm | 120mm | 120mm |
| Pieces per set | 5 | 4 | 4 |
| Enlarger width | 56.5 mm | 86.5mm | 86mm |
Complex Wheels
| Mouse | Rat | Large Rat | |
| External diameter (where the rodent walks) | 95mm | 144mm | 180mm |
| Internal diameter (where the complex wheel attaches to the lane of the RotaRod) | 30mm | 60mm | 80mm |
| Width | 56.3mm | 83mm | 110mm |
| No. of bars | 30 | 22 | 26 |
| Distance between bars | 9mm | 20mm | 19mm |
| Weight | 492g | 675g | 1090g |
