Portable Rat Stereotaxic Surgery Frame

Instead of a U-frame design, this instrument utilises adaptors to enlarge operating space thus offering additional working space for surgical instruments when working on the rat brain.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name

First Last

Organisation*

Please indicate the name of your University or company

Position

Email*

Phone

Message*

We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

Opt In

Opt Out

Description

Instead of a U-frame design, this instrument utilises adaptors to enlarge operating space thus offering additional working space for surgical instruments when working on the rat brain. The Stereotaxic Instrument includes 3-axes, a left-hand manipulator arm, rat adaptor, rat 18 ° ear bars, and a standard probe holder. Multiple subassembly options are available such as dual-arm, digital, etc.

Technical Parameters

Base plate size: 400mm x 255mm.
Distance between ear bar and base plate: 35.5mm.
Ear bar slots with vernier of 0.1mm resolution.
Scale range of Ear bars: 35mm with 1mm resolution.
Dorsal/Ventral adjustment range for the adaptor: 30mm (+10mm~-20mm) with 0.1mm resolution.
Working distance in 3 dimension is 80 mm with precise alignment to 0.1mm resolution.
Vertical direction: 180° rotation and lock at any angles.
Horizontal direction: 360° rotation and lock at any angles.
Dual-lead screws ensure stable, accurate and smooth manipulation.
Accuracy and flexibility can be maintained at variable temperatures.
Unique anti-clockwise UP mark engraved in the knob prevents incorrect operation.
Vertical lock and fixing knob are separated to ensure accurate function at any angle.
Replacing the U-frame enlarges the operating space, also making it more economical and reliable
Laser engraved scales enable comfortable reading.
Ear bar locked plate pressing instead of clamping ensures more stability.
Syringe pump, micro camera and drill can be attached to instruments.

Model Information

Model	Product Description	Adaptor	Ear bar	Three-dimensional manipulator	Holder	Base plate

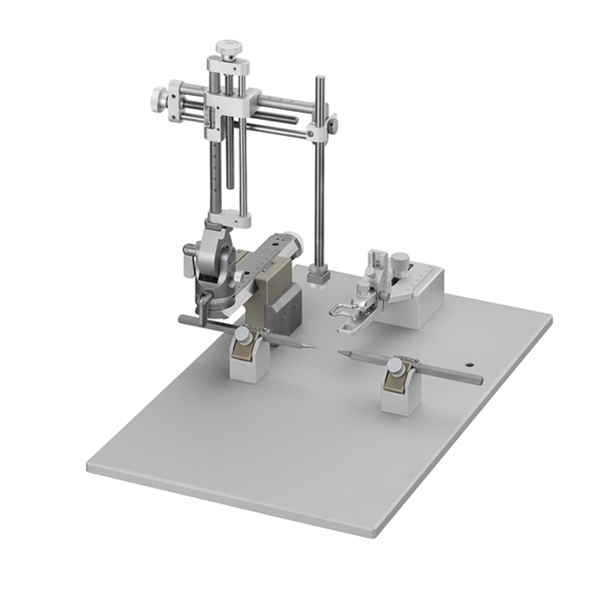

68505	Stereotaxic for Rat	68021	18°	SGL-Left	68201	68864S

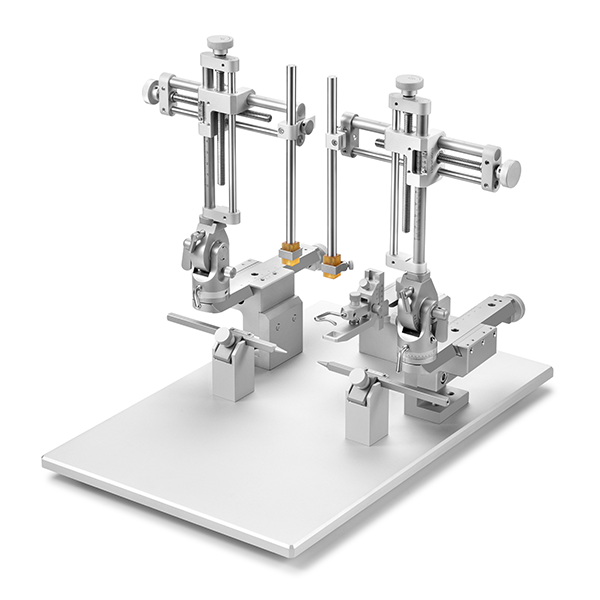

68508	Stereotaxic for Rat	68021	18°	Dual	68201	68864D

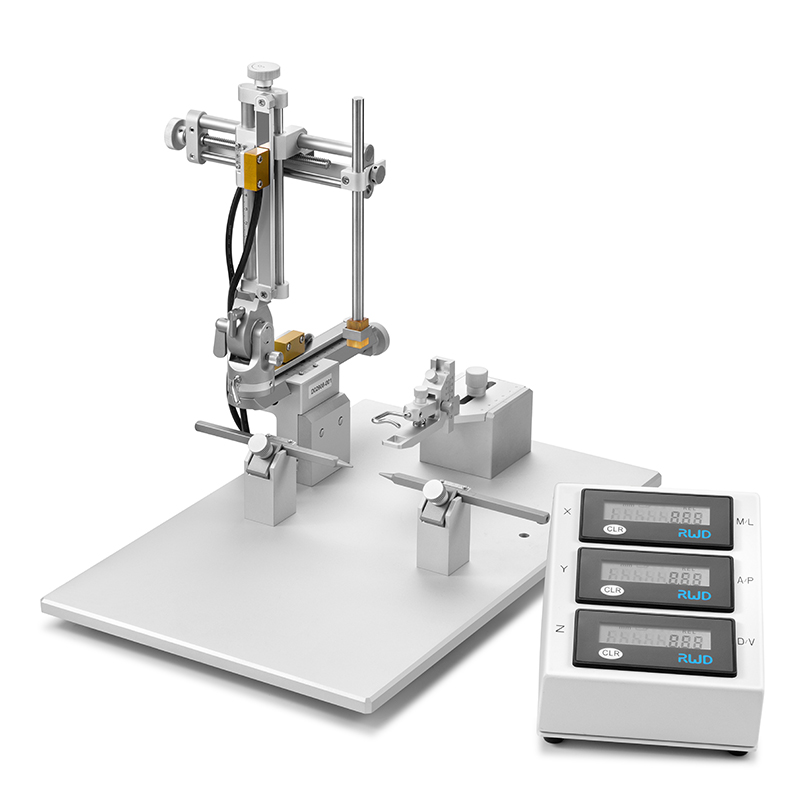

68511	Stereotaxic for Rat	68021	18°	Digital, SGL-Left	68201	68864S

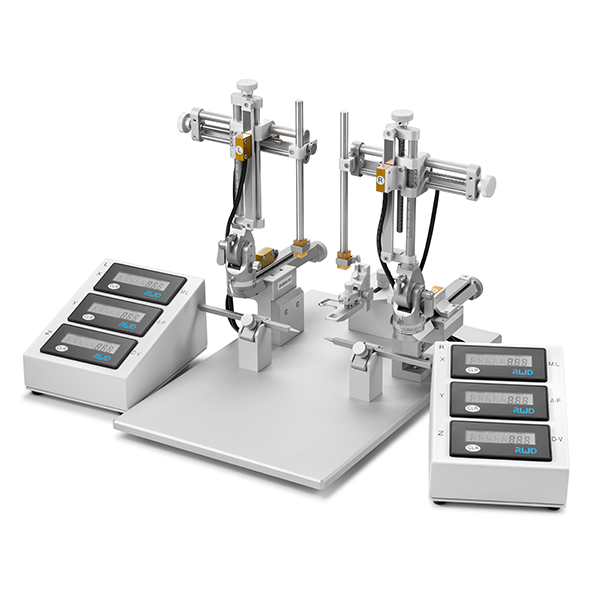

68514	Stereotaxic for Rat	68021	18°	Digital, Dual	68201	68864D

References

Diao, Y., Cui, L., Chen, Y., Burbridge, T. J., Han, W., Wirth, B., … & Zhang, J. (2018). Reciprocal connections between cortex and thalamus contribute to retinal axon targeting to dorsal lateral geniculate nucleus. Cerebral Cortex, 28(4), 1168-1182.

Fan, X. C., Fu, S., Liu, F. Y., Cui, S., Yi, M., & Wan, Y. (2018). Hypersensitivity of prelimbic cortex neurons contributes to aggravated nociceptive responses in rats with experience of chronic inflammatory pain. Frontiers in molecular neuroscience, 11, 85.

Liu, Y., Lai, S., Ma, W., Ke, W., Zhang, C., Liu, S., … & Shu, Y. (2017). CDYL suppresses epileptogenesis in mice through repression of axonal Nav1. 6 sodium channel expression. Nature communications, 8(1), 1-17.

Tang, Y., Lin, Y. H., Ni, H. Y., Dong, J., Yuan, H. J., Zhang, Y., … & Chang, L. (2017). Inhibiting Histone Deacetylase 2 (HDAC 2) Promotes Functional Recovery From Stroke. Journal of the American Heart Association, 6(10), e007236.

Huang, L., Yuan, T., Tan, M., Xi, Y., Hu, Y., Tao, Q., … & Luo, M. (2017). A retinoraphe projection regulates serotonergic activity and looming-evoked defensive behaviour. Nature communications, 8(1), 1-13.

Zhu, M., Li, H., Gyanwali, B., He, G., Qi, C., Yang, X., … & Tang, A. (2017). Auditory brainstem responses after electrolytic lesions in bilateral subdivisions of the medial geniculate body of tree shrews. Neurological Sciences, 38(9), 1617-1628.

Lei, Z., Wang, D., Chen, N., Ma, K., Lu, W., Song, Z., … & Wang, J. H. (2017). Synapse innervation and associative memory cell are recruited for integrative storage of whisker and odor signals in the barrel cortex through miRNA-mediated processes. Frontiers in cellular neuroscience, 11, 316.

Zhou, H., Xiong, G. J., Jing, L., Song, N. N., Pu, D. L., Tang, X., … & Richter-Levin, G. (2017). The interhemispheric CA1 circuit governs rapid generalisation but not fear memory. Nature communications, 8(1), 1-10.

Zhang, J., Liu, H., Du, X., Guo, Y., Chen, X., Wang, S., … & Zhang, W. (2017). Increasing of blood-brain tumor barrier permeability through transcellular and paracellular pathways by microbubble-enhanced diagnostic ultrasound in a C6 glioma model. Frontiers in neuroscience, 11, 86.

Li, G. F., Zhao, H. X., Zhou, H., Yan, F., Wang, J. Y., Xu, C. X., … & Zhang, H. L. (2016). Improved anatomical specificity of non-invasive neuro-stimulation by high frequency (5 MHz) ultrasound. Scientific reports, 6(1), 1-11.

Liu, M. G., Li, H. S., Li, W. G., Wu, Y. J., Deng, S. N., Huang, C., … & Xu, T. L. (2016). Acid-sensing ion channel 1a contributes to hippocampal LTP inducibility through multiple mechanisms. Scientific reports, 6, 23350.

Zhao, Baisong, et al. “Hyperbaric oxygen pretreatment improves cognition and reduces hippocampal damage via p38 mitogen-activated protein kinase in a rat model.” Yonsei medical journal 58.1 (2017): 131-138.

Zhao, Yunan, et al. “Decreased glycogen content might contribute to chronic stress-induced atrophy of hippocampal astrocyte volume and depression-like behavior in rats.” Scientific reports 7 (2017): 43192.

Espinosa, P., Silva, R. A., Sanguinetti, N. K., Venegas, F. C., Riquelme, R., González, L. F., … & Sotomayor-Zárate, R. (2016). Programming of dopaminergic neurons by neonatal sex hormone exposure: effects on dopamine content and tyrosine hydroxylase expression in adult male rats. Neural plasticity, 2016.

Li, Wei-Guang, et al. “ASIC1a regulates insular long-term depression and is required for the extinction of conditioned taste aversion.” Nature communications 7.1 (2016): 1-15.

Wang, G. Q., Cen, C., Li, C., Cao, S., Wang, N., Zhou, Z., … & Wang, J. (2015). Deactivation of excitatory neurons in the prelimbic cortex via Cdk5 promotes pain sensation and anxiety. Nature communications, 6(1), 1-16.
