PinPort™ to Tubing Connectors
Access a PinPort™ at the end of a segment of tubing
Product Enquiry
If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.
Product Enquiry
Product Enquiry
Please fill out the form if you would like to enquire about this product."*" indicates required fields

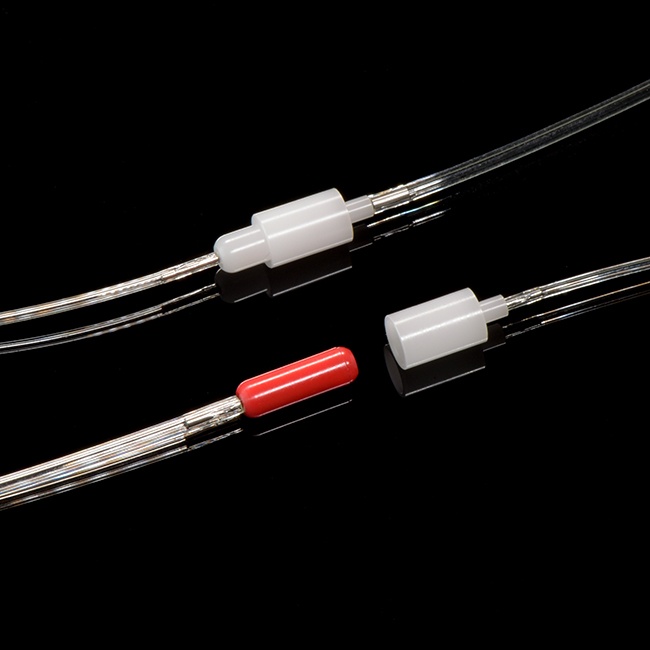

PinPort™-to-Tubing Connectors
Use a PinPort™ to Tubing Connector to access a PinPort™ at the end of a segment of tubing. Applications include acute experiments where tethering is not necessary, or external tubing connections where the self-sealing septum in the PinPort™ is helpful.
The connectors are 12mm long and feature 22ga or 25ga inputs. The tube that pierces the PinPort™ septum is 25ga. Minimum order quantity is five pieces. The connectors can be built into extension sets with luers; see below for a standard 30cm set or contact us for custom lengths.
For laboratory animal research use only.
Features and Benefits
- 22ga or 25ga input
- Low dead volume
- Quick, clean connection
Ordering Information
| Part Number | Description | Qty |
| PNP3MC/25 | Male PinPort connector, 25ga inlet, sterile | each |
| PNP3MC/22 | Male PinPort connector, 22ga inlet, sterile | each |

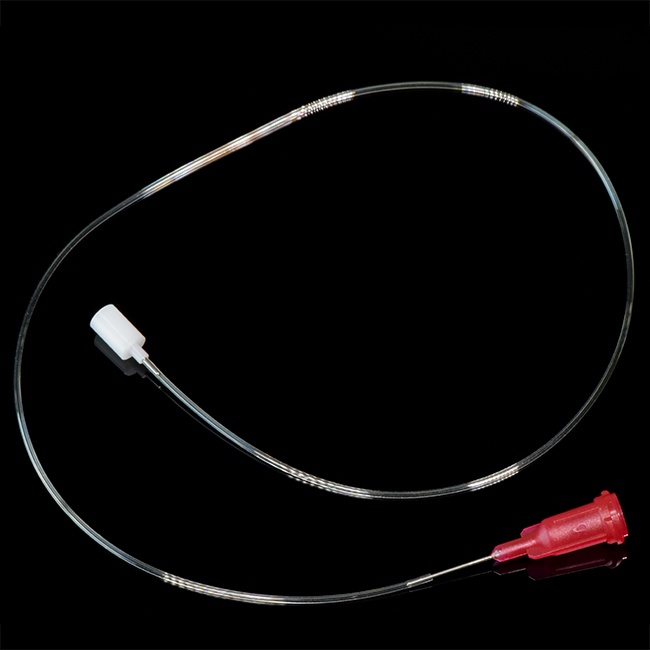

| PNP3MC/25-12 | PinPort extension set: PinPort connector, 12in (30cm) PU tubing, 25ga luer stub, sterile | each |
