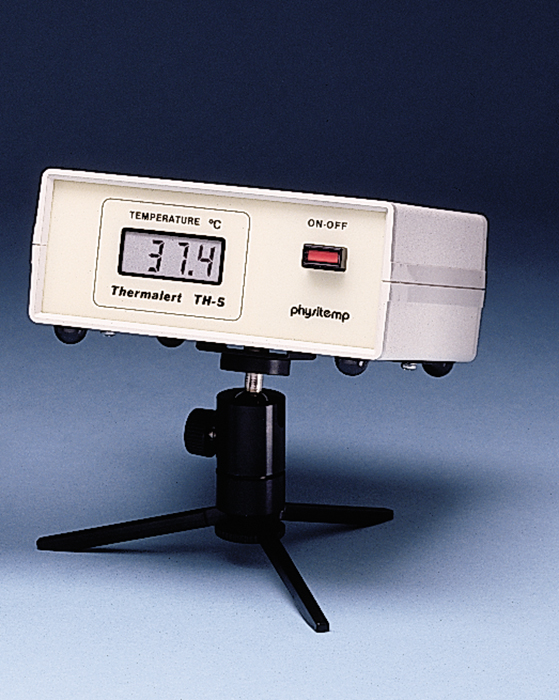

TH-5 Thermalert Monitoring Thermometer
TH-5 Thermalert Monitoring Thermometer
,

TH-5 Thermalert Monitoring Thermometer

This economical, easy to use thermometer from Physitemp is intended for continuous monitoring in the hospital or laboratory. The digital display reads to 0.1°C with an accuracy of 0.1°C ±1 digit. For safety, the unit is battery operated.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

Physitemp TH-5 Thermalert Monitoring Thermometer

The TH-5 is one of our most economical precision thermometers in the Physitemp product line. The TH-5 offers the same high accuracy (0.1°C ±1 digit) and resolution as all our other thermometers, but with a narrow temperature range.

The TH-5 is ideally suited for either a laboratory or hospital setting where continuous temperature readings within the physiological range are sufficient.

THe TH-5 has a temperature range of 25-45°C with a single probe input. For lab applications where recording is needed, the TH-5 can be supplied with analog output (model: TH-5/AOP).

The instrument is easy to use – just connect the sensor and switch on. For safety, the TH-5 is battery operated. Battery life is approximately 1200 continuous hours. The digital display reads to 0.1°C with 0.1° accuracy ±1 digit. Physitemp offers a complete line of Type T Thermocouple probes, which are all interchangeable for use with the TH-5 Thermometer. No probe calibration necessary. (Stand not included, see accessory – TTS-4 Tilt Stand)

Features

  • Large Digital Display
  • Reads to 0.1°C in physiological range 25-45°C
  • High Stability
  • No calibration necessary
  • Safe battery operation
  • Long Battery Life of 1200 hours
SKU: TH-5 Categories: , Tags: , , ,
Temperature Range 25° to 45°C
Resolution 0.1°C
Accuracy 0.1°C ± 1 digit
Ambient Operating Range 15-45°C
Calibration Conformity Conforms to NIST tables – (monograph 175)
Sensors Type T Thermocouple

Power

Batteries Four ”C” cells
Battery Life 1200 hours
Power Supply N/A
Dimensions 6”W x 2.5”H x 6.25”D
Weight 2.5 lbs

Input/Output

Inputs 1
Input Socket Type T
Analog Output Optional See TH-5/AOP
Readout 0.5” high LCD
