OrchesTA™ Model 500 Ambulatory Pump

For large animal infusion

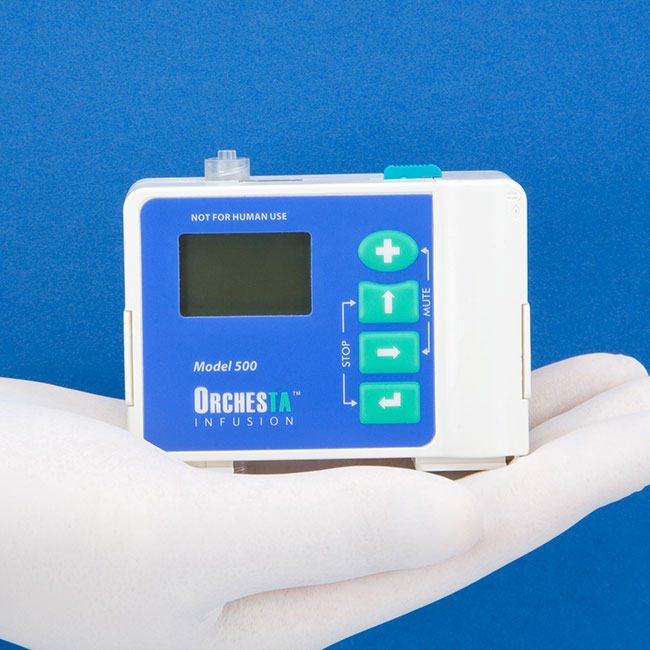

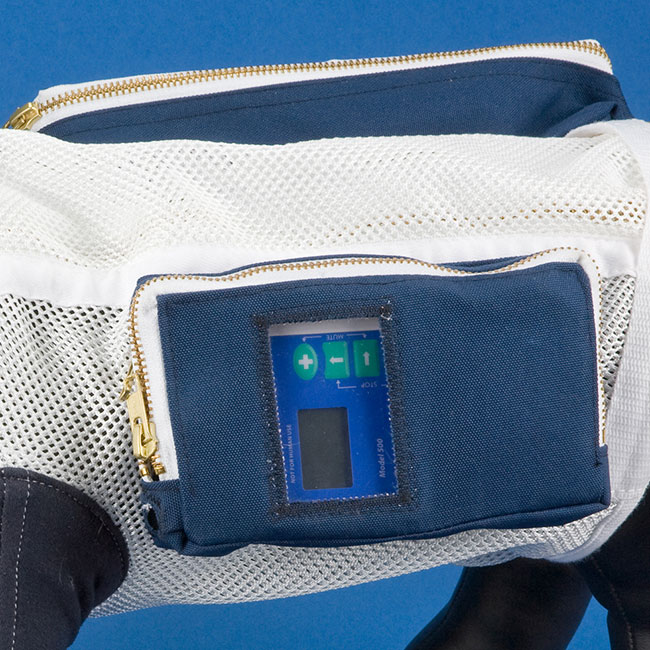

Weighing only 180g, the OrchesTA™ model 500 pump (formerly known as Pegasus) is one of the most versatile pumps for ambulatory animal infusion. The peristaltic mechanism uses cost-efficient tube sets to deliver 0.1-100 ml/hr pulling from drug bags ranging from 5 to 300ml. The pumps are typically placed in the pocket of a Lomir jacket and the drug bag can be protected in a box.

Combine the model 500 pump to an OrchesTA™ wireless pump transceiver to control and monitor your infusion study remotely using OrchesTA™ Infusion Automation software. The software enables remote start/stop of the pump, helps to limit human interaction with the animals, automates repetitive tasks and reduces the opportunities for programming and documentation errors.

The OrchesTA™ version of this pump is not approved for human use.

Features and Benefits

  • Weighs only 180g
  • Peristaltic mechanism pulls from bags of 50-300ml at rates of 0.1-100ml/hr
  • Battery life of 1 liter
  • Advanced occlusion alarm
  • Delayed start feature
  • Mute sounds option
  • Operate stand-alone or remotely as part of OrchesTA™ network



Ordering Information

Part Number Description  Qty
OR-500-0001 OrchesTA model 500 peristaltic pump (PEGA LAB 40040-E; 0.1-100ml/hr) each
OR-500-1000 OrchesTA model 500 peristaltic pump tube (PEGA tube 10255) box of 10
OR-500-1205 OrchesTA model 500 drug bag, PVC, 50mL (PEGA bag 14050) box of 10
OR-500-1210 OrchesTA model 500 drug bag, PVC, 100mL (PEGA bag 14100) box of 10
OR-500-1215 OrchesTA model 500 drug bag, PVC, 150mL (PEGA bag 14150) box of 10
OR-500-1230 OrchesTA model 500 drug bag, PVC, 300mL (PEGA bag 14300) box of 10
OR-500-1405 OrchesTA model 500 plastic box for 50ml drug bag (PEGA box 10405) box of 10
OR-500-1410 OrchesTA model 500 plastic box for 100ml drug bag (PEGA box 10410) box of 10
OR-500-1415 OrchesTA model 500 plastic box for 150ml drug bag (PEGA box 10415) box of 10
