One Channel Vascular Access Button™ for Rats

For tethered and intermittent access

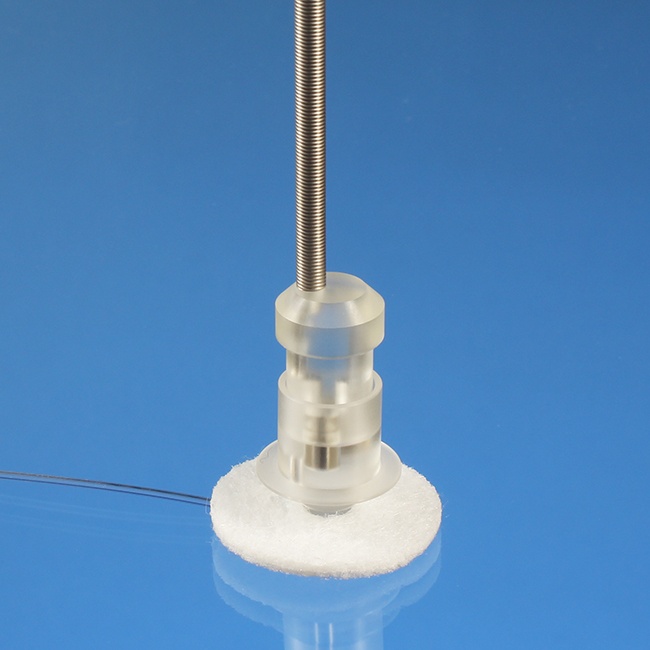

This transcutaneous button features an external port with a septum for quick, clean and repeated access to a rat’s implanted catheter. Applications include bolus or continuous dosing, blood sampling and IV self-administration. For intermittent access use a syringe fitted with a needlefree PinPort™ injector; for continuous access from outside the cage snap in a mating tether.

The design, updated in 2017, uses magnets for stress-free connection, and smaller PinPorts so that tethers, injectors and caps are compatible with the two-channel buttons.

They are available with 22ga connectors to mate with 3Fr polyurethane rat catheters, or 27ga for intrathecal catheters.

Group house animals by using the protective aluminum cap — an animal welfare benefit that has never before been available to rats with externalized catheters.

NOTE: The original VAB95BS buttons, with the larger port and twist-in tether connection, remain available.

Features and Benefits

  • 1in (2.5cm) polyester surgical felt disk implanted under the skin
  • 22ga or 27ga catheter connectors
  • Catheters are not exposed, preventing evaporation and improving patency
  • Closed system allows aseptic technique and positive pressure technique which can significantly improve patency
  • Group house using the protective cap (available in red, blue or green for animal identification)
  • Needle-free access for safety
  • Order animals from Charles River or Envigo with the buttons installed as a surgical service



Ordering Information

Part No. Description Qty Downloads
VABR1B/22 Vascular Access Button for rat, magnetic, 1 channel 22ga (white port), injector each
VABR1B/25 Vascular Access Button for rat, magnetic, 1 channel 25ga (white port), injector each
VABR1B/27 Vascular Access Button for rat, magnetic, 1 channel 27ga (white port) for intrathecal catheters, injector each
VABR1T/22 Tether for magnetic 1 channel rat VAB (white port), 12in, tube fits 22ga each
KVABR1T/22 Rat 1ch magnetic VAB tether kit: VABR1T/22, 375/22PS, 24in CoEx, LS22 each Specs
KVABR1T/25-ABS Rat VAB tether kit for ABS: 10.5in VABR1T/25 (white port), 375/25PS, 9in 015 silicone each Specs
KVABR1T/25-MBS Rat 1ch magnetic VAB tether kit: 12in tether with CoEx (white port), 375/25PS, 1in CoEx, white Pinport, injector each Specs
KVABR1T/MED Rat 1ch magnetic VAB tether kit: VABR1T/22, 375/22PS, 60in PU, LS22 each Specs
VABRC Protective aluminum cap for magnetic rat VABs (red) each
VABRC-B Protective aluminum cap for magnetic rat VABs (blue) each
VABRC-G Protective aluminum cap for magnetic rat VABs (green) each
VABRT-CAP Protective plastic cap for magnetic rat VAB 1 and 2 channel tethers each
PNP3M PinPort injectors, 50 sterile pouches of 5 box of 250
PNP3M-50 PinPort injectors, 10 sterile pouches of 5 box of 50
