Lambda TLED / TLED+

The Lambda TLED and TLED+ are stand-alone LED light sources that can be used with the transmitted light path of a microscope or in other applications with similar requirements.

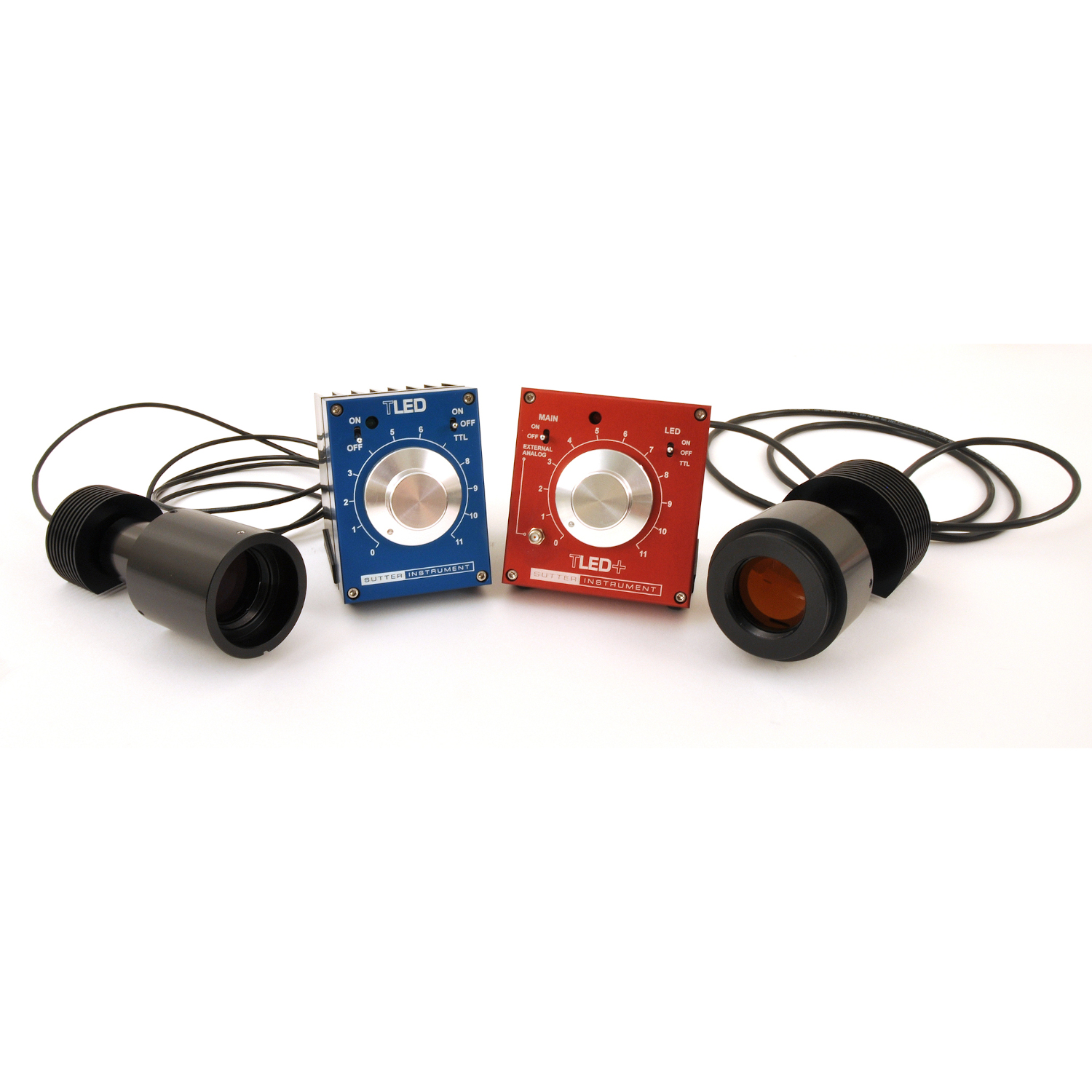

The basic system consists of an LED mounted on a special black-anodized aluminium heat sink and a controller. Both TLED and TLED+ controllers are powered by a rugged modular universal power supply. The controllers provide intensity control and on-off control via a toggle switch or TTL logic. The on-off time is < 25 µsecs when using TTL control. In addition to digital input control, the Lambda TLED+ has an analog input to modulate the LED intensity. The Lambda TLED and TLED+ are expected to have stable output that will last in excess of 50,000 hours.

The Lambda TLED and TLED+ can be ordered with a high-output white light LED making it a suitable light source for contrast methods including Phase and Differential Interference Contrast (DIC).

As an alternative to the standard white-light LED, we have several options available including an IR-LED which is suitable for experiments requiring IR-DIC. Please contact Linton Instrumentation for details.

Our dual channel Lambda TLED+ option combines two high power LEDs into a single light path. The TLED-DC includes a 460 nm LED for stimulation, while the second channel passes the phosphor emission from a white light LED. The white light channel can be used to access spectra between 510 nm to 630 nm and is suitable for a variety of applications. Both channels are driven by individual TLED+ controllers and can be triggered, also individually, by a TTL signal. Alternate wavelength configurations are available.

Each Lambda TLED/TLED+ system includes an optical mounting adapter for the microscope and detailed installation instructions. Mounting adapters are designed to fit most models of Nikon, Olympus, Zeiss and Leica microscopes. Custom adapters for the Lambda TLED/TLED+ are available at an additional cost.

The TLED-FT is a powerful and compact array of 9 LEDs used to deliver a homogenized beam of light to the sample. Useful for illuminating a 96 well plate, the TLED-FT is available in blue, green, red and white light configurations. The TLED controller provides stable, adjustable light intensity by switch or TTL. Ideal for optogenetics, and transparent samples.

The TLED-RL is a ring light illuminator for stereo microscopes with lenses up to 65 mm in outside diameter. The ring light is composed of a circular assembly of many white light LEDs that provide even and direct illumination of the sample.

Features

• > 50,000 hour lifetime
• < 25 µsecs ON-OFF time
• TTL control (with polarity switch)
• Very stable output
• Compact stand-alone design
• Easy installation

Common Applications

• Transmitted light
• Phase Contrast
• Differential Interference Contrast (DIC)



Ordering Information

Lambda TLED / TLED+

Lambda TLED Single Channel LED Light Source
Includes Lambda TLED light source, TLED controller, white light LED and power supply
Catalog Number	Description
TLED-N	Lambda TLED for Nikon
TLED-N40	Lambda TLED for Nikon E400/E600
TLED-N50	Lambda TLED for Nikon AZ100
TLED-N65	Lambda TLED for Nikon FN1
TLED-Y	Lambda TLED for Olympus
TLED-Z	Lambda TLED for Zeiss
TLED-L	Lambda TLED for Leica
TLED-C	Lambda TLED for C-mount
LAMBDA TLED+ Single Channel LED Light Source
Includes Lambda TLED+ light source, TLED+ controller, white light LED and power supply
TLEDPLUS-N	Lambda TLED+ for Nikon
TLEDPLUS-N25 1	Lambda TLED+ for Nikon TE200/300, Diaphot 200/300
TLEDPLUS-Y	Lambda TLED+ for Olympus
TLEDPLUS-Z	Lambda TLED+ for Zeiss
TLEDPLUS-L	Lambda TLED+ for Leica
LAMBDA TLED-RGB LED Light Source
Includes Lambda TLED-RGB light source, TLED controller and power supply
TLED-RGB-N	Lambda TLED-RGB for Nikon
TLED-RGB-Y	Lambda TLED-RGB for Olympus
TLED-RGB-L	Lambda TLED-RGB for Leica
LAMBDA TLED-FT LED Light Array
Includes Lambda TLED-FT light array, TLED controller and power supply. Please specify either blue, green, red or white light LEDs when ordering.
TLED-FT	Lambda TLED-FT light array
LAMBDA TLED-RL LED Light Source
Includes Lambda TLED-RL light source, TLED controller and ring light
TLED-RL	Lambda TLED-RL reflected light illuminator

---



Accessories

Catalog Number	Description
TRIGGER	USB trigger box

Custom mounting adapters are available at an additional cost. Contact Sutter for details.

^* Other wavelengths may be available. Contact Sutter for details.
¹ Replaces the epi-illuminator
