Infusion/Withdrawal Syringe pumps, Syringe Pumps and Fluid Handling
KDS 210 /210P Legacy Dual Syringe, Infusion/Withdrawal Pump
The KDS210 offers you more advanced features than any other infusion / withdrawal pump in its price range – including five operating modes plus independent rate and volume settings for both infusion and withdrawal.
Product Enquiry
If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.
Product Enquiry
Product Enquiry
Please fill out the form if you would like to enquire about this product."*" indicates required fields

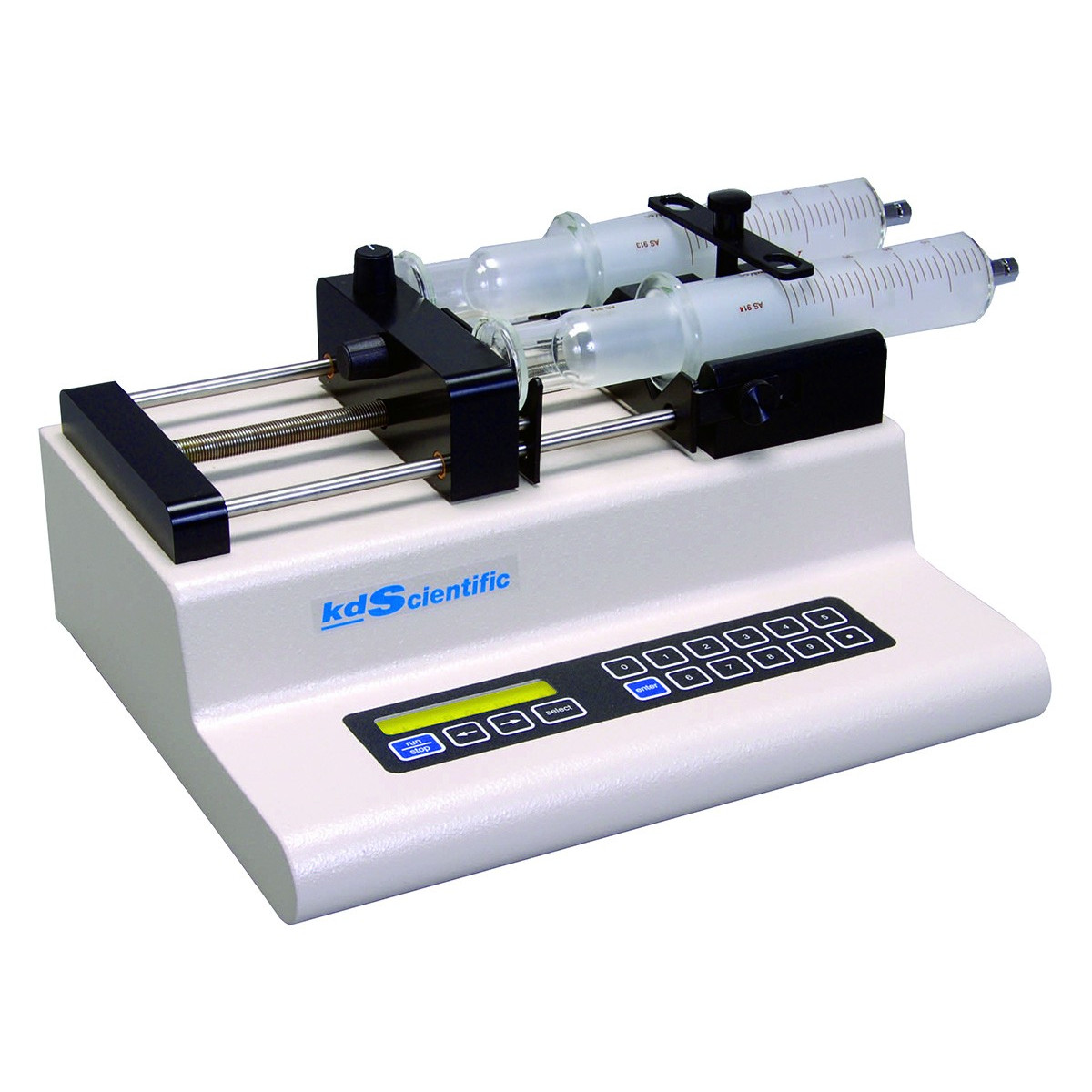

KDS 210 /210P Dual Syringe, Infusion/Withdrawal Pump
The KDS210 offers you more advanced features than any other infusion / withdrawal pump in its price range – including five operating modes plus independent rate and volume settings for both infusion and withdrawal.
Features
- Holds two syringes, 10 µl to 140 ml each
- Backlit LCD display
- Knob locks/unlocks drive block for effortless, drag-free adjustment
- Simple menu-driven setup:
- select syringe size from displayed table
- dispense volume
- dispense flow rate
- Continuous dispense volume display
- Preset volume control and automatic shut-off
- Settings can be reviewed or changed during operation
- Stall detection
- Choice of unit selection
- Last settings stored in permanent memory
- Built-in RS232C interface for computer “daisy chaining” up to 100 pumps
- TTL interface for foot switch, timer, relay control, outputs for run indicator, valve control
- Independent rate and volume settings for infusion and withdrawal
- Multiple mode selection:
- Infusion
- Withdrawal
- Infusion then withdrawal
- Withdrawal then infusion
- Continuous cycle
- Optional multi-step keypad programmable feature (KDS210P)
Ordering Information
| Code | Product |
| 789210 | KDS 210 Legacy Dual Syringe, Infusion/Withdrawal Pump – 220 VAC |
| 789212 | KDS 210P Legacy Dual Syringe, Programmable, Infusion/Withdrawal Pump – 220 VAC |
Technical Literature
| KDS 200 Manual |
| KD Scientific Full Line Catalog |
| Declaration of Conformity for the KDS 200 and KDS 410 Series Syringe Pumps |
| Max. No. of Syringes | Two |
| Syringe Size | 10 µl to 140 ml |
| Dimensions | 11 x 9 x 5.5 in. 28 x 23 x 14 cm |
| Weight | 9 lb (4 kg) |
| Linear Force | 40 lb (18 kg) |
| Advance Per Microstep | 0.165 micron (1/16 step) |
| Max Step Rate (1/2 Step) | 1600/sec |
| Min Step Rate | 1 step / 100 sec. |
| Accuracy | ± < 1% |
| Reproducibility | ± 0.1% |
| Audible Alarm | (Optional) ** |
