KDS Stainless Steel Syringes

A premier line of stainless steel syringes is now offered by Linton Instrumentation. These syringes are a perfect complement for the KDS 410 High Pressure Syringe Pump, Rugged Stainless steel syringes are an ideal solution when the pressures and the force are high, completely, eliminating the problems of breaking glass syringes.

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*

KD Scientific logo

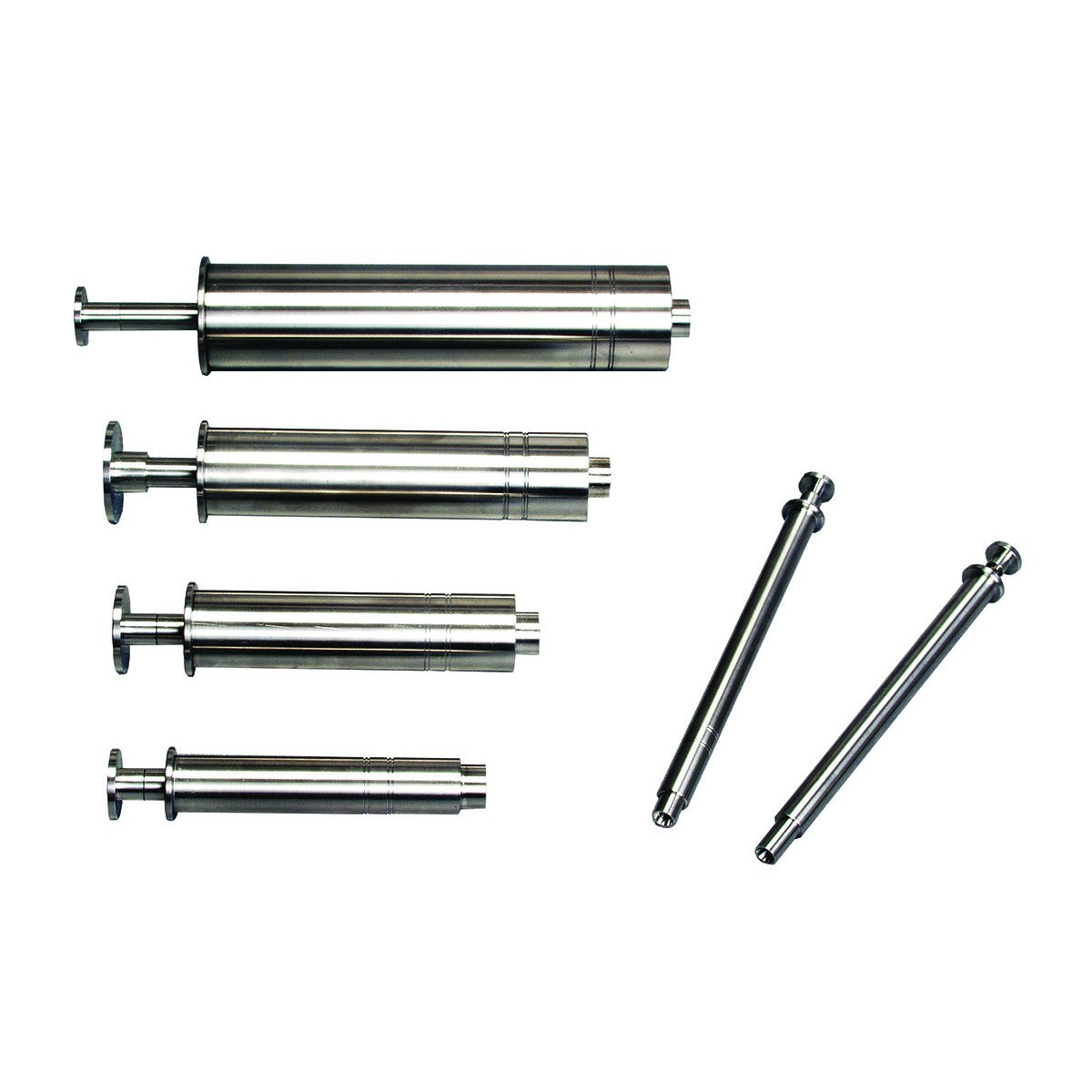

KDS Stainless Steel Syringes

Good resistance to most aggressive liquids
Available in sizes 2.5 ml, 8 ml, 20 ml, 50 ml, 100 ml, 200 ml
Luer Lock (LL) or Swagelok™ tip

A premier line of stainless steel syringes is now offered by Linton Instrumentation. These syringes are a perfect complement for the KDS 410 High Pressure Syringe Pump, Rugged Stainless steel syringes are an ideal solution when the pressures and the force are high, completely, eliminating the problems of breaking glass syringes.

Stainless steel offers good resistance to most aggressive liquids. Wetted parts are #16 stainless steel or Viton. Syringes are available in 2.5, 8, 20, 50, 100 and 200 ml sizes with removable replaceable tips. Genuine SWAGELOK™ syringe to tube fittings are available in 1/16, 1/8, and 1/4 inch sizes. A luer lock end fitting is also available. All tips are interchangeable with all syringes from 20 to 200 ml in the size.

Both syringes barrel end plungers are #316 stainless steel. A Viton O-ring seal between top and end of the barrel insures against leakage. Syringes are guaranteed to be leak free for pressures up to 7000 psi.

All syringes are supplied with inside diameter dimensions for use with the KDS model 410 series. Replacement Viton O-rings are available as are the more chemically resistant perfluroelastomer O-rings.

For complete specifications, please view our selection guide for KDS Stainless Steel Syringes.



Ordering Information

Syringe Volume Syringe with Swagelok™ 1/16″ Syringe with Swagelok™ 1/8″ Syringe with Swagelok™ 1/4″ Syringe with Luer Lock
2.5 ml 780801 n/a n/a n/a
8 ml 780802 780807 n/a n/a
20 ml 780803 780808 780812 780816
50 ml 780804 780809 780813 780817
100 ml 780805 780810 780814 780818
200 ml 780806 780811 780815 780819

Swagelok™ is a registered trademark.



Replacement Parts

 Order Code Part Qty/pk.
78-0830 Replacement Seal 2.5 ml 1
78-0831 Perfluoroelastomer O-Ring 8 ml 2
78-0832 PTFE Backup-Ring PTFE 8 ml 2
78-0833 Perfluoroelastomer Tip Seal O-Ring 2.5 or 8 ml 1
78-0834 Perfluoroelastomer O-Ring 20 ml 2
78-0835 Perfluoroelastomer O-Ring 50 ml 2
78-0836 Perfluoroelastomer O-Ring 100 ml 2
78-0837 Perfluoroelastomer O-Ring 200 ml 2
78-0838 Replacement Viton O-Ring 20 ml 10
78-0839 Replacement Viton O-Ring 50 ml 10
78-0840 Replacement Viton O-Ring 100 ml 10
78-0841 Replacement Viton O-Ring 200 ml 10
78-0842 Perfluoroelastomer Tip Seal O-Ring 20 to 200 ml 1
78-0843 Replacement Viton Tip Seal O-Ring Seal 20 to 200 ml 20
78-0844 1/16″ Swagelok™ Fitting for 2.5 to 8 ml Syringes 1
78-0845 1/8″ Swagelok™ Fitting for 2.5 to 8 ml Syringes 1
78-0846 1/16″ Swagelok™ Fitting for 20 to 200 ml Syringes 1
78-0847 1/8″ Swagelok™ Fitting for 20 to 200 ml Syringes 1
78-0848 1/4″ Swagelok™ Fitting for 20 to 200 ml Syringes 1
78-0849 Luer Lock Fitting for 20 to 200 ml Syringes 1
