e-Celsius Performance Core Temperature Monitoring System
e-Celsius Performance from BodyCap is a unique solution for continuous core temperature monitoring. The ingestible pill continuously monitors and records core body temperature and has internal memory embedded, enabling guaranteed continuous recording in any environment without resticting movement.
Product Enquiry
If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.
Product Enquiry
Product Enquiry
Please fill out the form if you would like to enquire about this product."*" indicates required fields
The temperature variable is a key indicator of the subject’s physiological status. The continuous nature of the measurement is quite difficult to obtain and only a few restrictive devices (rectal, esophageal probes, etc.) allow continuous core temperature monitoring.
The e-CELSIUS® Performance solution from BodyCap makes it possible to collect continuous, reliable and accurate core temperature data while preserving the subjects’ comfort and mobility. It is composed of 3 elements:

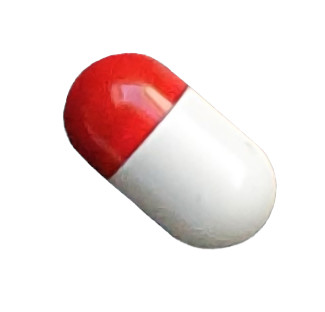

An ingestible electronic capsule: The capsule is delivered individually packaged. Once activated, it communicates in real time, and continuously transmits the core temperature data. The single-use e-Celsius® Performance capsule is removed naturally, allowing it to monitor the core temperature over a period corresponding to the transit time (24-48 hours on average).
A monitor: The e-Viewer® Performance monitor receives and records the data transmitted by the capsule. The communication distance between the capsule and the monitor ranges from 1 to 3m (depending on environment and subject). The capsule has also its own memory. In case of a communication disruption between the monitor and the capsule, data continues to be captured by the capsule and automatic synchronization is resumed once communication re-established. The same monitor can manage up to three capsules simultaneously in order to manage several subjects in parallel or for extended use.
An activator: An activation box takes the e-Celsius® capsule out of standby mode, activating it and allowing you to associate it with the e-Viewer® Performance monitor.
Key benefits
Designed by physiologists, the solution was developed to combine comfort and ease of use. The e-Celsius® Performance solution is currently the only solution on the market allowing continuous core temperature monitoring without any constraint for the subject. Thanks to the on-board memory in the capsule, temperature monitoring can be continuous, without the need to wear the monitor continuously. Key advantages of the solution for our customers:
- Improve the conditions for subjects monitoring
- Preserve ecological monitoring condition (real life, competition, field exercise, …)
- Secure tests and protocols
- Reduce recruitment constraints
- Limit artifacts associated to the operator
- Improve decision-making through reliable and accurate data and access to a complete history.
Applications
Clinical and basic research
The temperature variable is regularly part of the “Primary outcomes” in the context of a clinical trials. Continuous, reliable and accurate temperature monitoring allows to secure the protocols without adding any constraints for the subject and the operator.
Prevention of hyperthermia and hypothermia

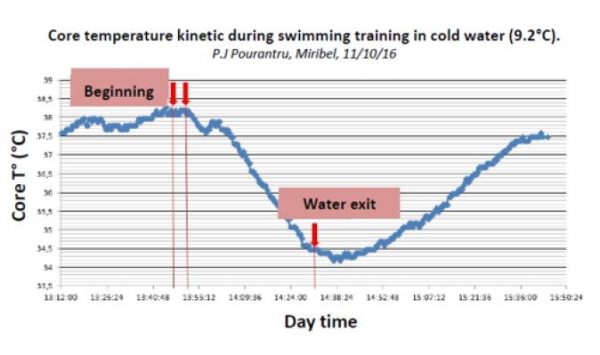

Long duration exercises performed in hot environment induce potential rise in core temperature that could range from hyperthermia to heat stroke. The constraint is similar for people exercising in cold condition; hypothermia risks have to be anticipated.
Thermoregulation process efficiency evaluation
In the context of sports performance, thermoregulatory responses are very different among individuals. Objective measurement of the core temperature during exercise allows to individualize training processes. The e-Celsius® Performance solution allows individualization of heat acclimatization protocols and better preparation for competitions in hot environments.
Sleep
Core temperature is a key indicator of the subjects’ biological rhythmicity. Continuous monitoring of this variable allows the characterization of the core temperature circadian rhythm, which is critical for sleep analysis and the sleep disorders diagnosis.
Scientific references
| Huang et al., 2020 Ingestible sensors correlate closely with peripheral temperature measurements in febrile patients. |
| Taylor et al., Limiting the Rise in Core Temperature During a Rugby Sevens Warm-up With an Ice Vest. Int. J. Sports Physiol. Perform. 2019, 6: 1-20. |
| Racinais et al., Core temperature up to 41.5ºC during the UCI RoadCycling World Championships in the heat. Br. J. Sports Med. 2018, 0: 1-4. |
| Schmit et al., Optimizing Heat Acclimation for Endurance Athletes:High- Versus Low-Intensity Training. Int. J. Sports Physiol. Perform. 2018, 13: 816-823. |
| Weissland et al., Variations of central and skintemperatures during 24h in elite wheelchair rugby players. Annals of Physical and Rehab. Med. 2017, 60S: e9–e15. |
Product Downloads
e-Celsius Brochure
e-Celsius® Performance capsule |
|
| Delivered cleaned | |
| Storage | 2 years |
| Weight | 1.7g |
| Size | 17.7mm x 8.9mm |
| Sampling period | 15s, 30s, 1min, 2min, 5min |
| Accuracy | 0.2°C |
| Calibration range | 25°C to 45°C |
| FIFO memory | 2000 data capacity |
| Data transfer | RF transmission (433 – 434MHz) |
| Communication range
(environment and patient dependant) |
1-3m |
| Life duration | 20 days (with F = 30s) |
e-Viewer® Performance monitor |
|
| 3 capsules per monitor | |
| Multichannel | 7 monitors in parallel |
| Storage | 150 185 data per capsule |
| Autonomy | 24/36h |
| Size | 120mm x 70mm x 15mm |
| Activator size | 69mm x 59mm x 31mm |
