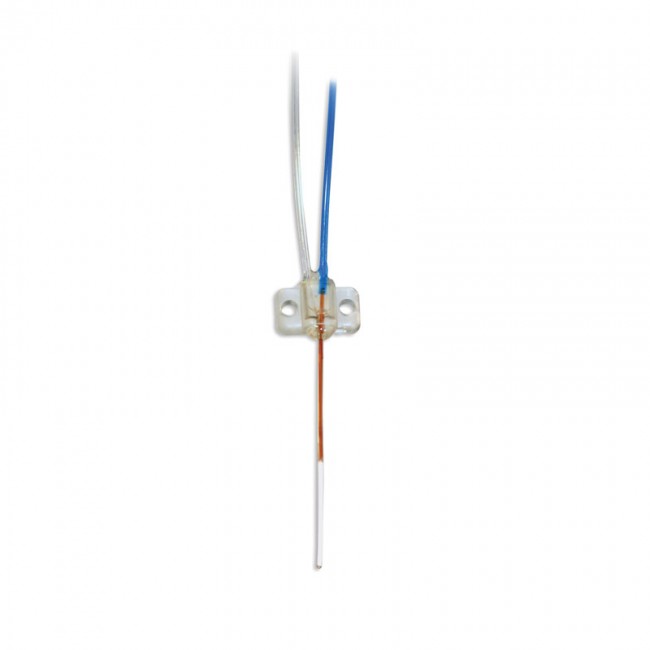

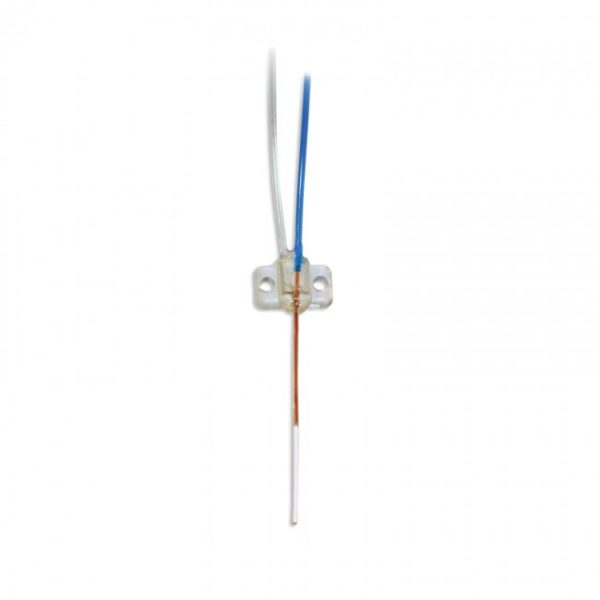

CMA 20 Microdialysis Probes

NEW! CMA 20 PROBE WITH 30 MM MEMBRANE LENGTH

Designed for dialysis experiments in moving soft tissues such as muscle, heart, skin and adipose tissue, as well as in blood, vitreous fluid of the eye, etc.

  • Tailored for dialysis in peripheral tissues and blood vessels
  • Inlet and outlet tubing is attached
  • Soft, non-metallic construction
  • Available membranes: PAES, 20 kDa MWCO or PES, 100 kDa MWCO
  • Membrane lengths: 4, 10 and 30 mm

Product Enquiry

If you would like to send us an enquiry about this product, please click the button below, fill in the form and submit.

Product Enquiry

Product Enquiry

Please fill out the form if you would like to enquire about this product.

"*" indicates required fields

Name
Please indicate the name of your University or company
We would really like to stay in touch, so that we can inform you about new products, training events and other news that we think might be of interest to you. To comply with data protection regulations, we can only contact you in this way if we have your explicit permission to do so. By ticking the opt in box you are giving consent for Linton Instrumentation to process your data and you understand that you have the right to withdraw it at any time.*



The CMA 20 Microdialysis Probes are designed for dialysis experiments in moving soft tissues such as muscle, heart, skin and adipose tissue, as well as in blood, vitreous fluid of the eye, etc.

As with the other models, the probe is of concentric construction, but is made completely from plastic materials. Due to its flexibility, the probe must be implanted in the tissue with the help of a steel needle and a split tubing.

CMA 20 probe with introducer




Ordering Information

Product Name Item #
CMA 20 Elite Probe, 4 mm membrane length, pkg. of 3 CMA8010435
CMA 20 Elite Probe, 10 mm membrane length, pkg. of 3 CMA8010436
CMA 20 Elite Probe, 30 mm membrane length, pkg. of 3 CMA8011430
CMA 20 HighCO Probe, 4 mm membrane length, pkg. of 3 CMA8309670
CMA 20 HighCO Probe, 10 mm membrane length, pkg. of 3 CMA8309671
CMA 20 HighCO Probe, 30 mm membrane length, pkg. of 3 CMA8011630



Downloads

CMA 20 Elite Probes User’s Manual
CMA 20 High CO Probes User’s Manual
2016 CMA Microdialysis Catalog
CMA Microdialysis Probes Catalog




Journal Articles

Selected Recent Publications

Zhang, X., Wang, L., et al., 2017. Online microdialysis-ultra performance liquid chromatography–mass spectrometry method for comparative pharmacokinetic investigation on iridoids from Gardenia jasminoides Ellis in rats with different progressions of type 2 diabetic complications. Journal of Pharmaceutical and Biomedical Analysis, 140, pp.146–154.

Klucher, J., 2017. Enzyme kinetics studies to guide mathematical modeling of microdialysis sampling to predict in situ biochemistry. Chemistry & Biochemistry Undergraduate Honors Theses. Available at: http://scholarworks.uark.edu/chbcuht/22.

Torres, B.G.S. et al., 2017. Population Pharmacokinetic Modeling as a Tool to Characterize the Decrease in Ciprofloxacin free Interstitial Levels Caused by Pseudomonas aeruginosa Biofilm Lung Infection in Wistar Rats. Antimicrobial Agents and Chemotherapy, p.AAC.02553-16.

Tang, Z. et al., 2017. Liver, blood microdialysate and plasma pharmacokinetics of matrine following transdermal or intravenous administration. Die Pharmazie – An International Journal of Pharmaceutical Sciences, 72(3), pp.167–170.

Su, C.-K., Tseng, P.-J., et al., 2017. Sequential enzymatic derivatization coupled with online microdialysis sampling for simultaneous profiling of mouse tumor extracellular hydrogen peroxide, lactate, and glucose. Analytica Chimica Acta, 956, pp.24–31.

Su, C.-K., Chen, Y.-T. & Sun, Y.-C., 2017. Using on-line solid phase extraction for in vivo speciation of diffusible ferrous and ferric iron in living rat brain extracellular fluid. Analytica Chimica Acta, 953, pp.87–94.

Bernardi, P.M., Barreto, F. & Dalla Costa, T., 2017. Application of a LC–MS/MS method for evaluating lung penetration of tobramycin in rats by microdialysis. Journal of Pharmaceutical and Biomedical Analysis, 134, pp.340–345.

Fong, S.Y.K. et al., 2017. A novel microdialysis-dissolution/permeation system for testing oral dosage forms: A proof-of-concept study. European Journal of Pharmaceutical Sciences, 96, pp.154–163.

Demand, D., Schack-Kirchner, H. & Lang, F., 2017. Assessment of diffusive phosphate supply in soils by microdialysis. Journal of Plant Nutrition and Soil Science, 180(2), pp.220–230.

Post, E.H. et al., 2017. Changes in kidney perfusion and renal cortex metabolism in septic shock: an experimental study. Journal of Surgical Research, 207, pp.145–154.

Probe Name CMA 20 Elite CMA 20 High Cut-off
Membrane Length 4, 10 and 30 mm 4, 10 and 30 mm
Membrane Diameter 0.5 mm 0.5 mm
Membrane Material PAES PES
Molecular Weight Cut Off 20 kDa 100 kDa
Polyurethane Shaft Diameter 0.77 mm 0.77 mm
Probe Length (Shaft + Membrane)

24 mm (20 mm Shaft + 4 mm Memb.)

24 mm (14 mm Shaft + 10 mm Memb.)

44 mm (14 mm Shaft + 30 mm Memb.)

24 mm (20 mm Shaft + 4 mm Memb.)

24 mm (14 mm Shaft + 10 mm Memb.)

44 mm (14 mm Shaft + 30 mm Memb.)

Inlet Internal Volume

1.4 µL (4 mm Memb.)

1.4 µL (10 mm Memb.)

2.4 µL (30 mm Memb.)

1.4 µL (4 mm Memb.)

1.4 µL (10 mm Memb.)

2.4 µL (30 mm Memb.)

200 mm Inlet Tubing (Blue) Membrane 3.6 µL (ID 0.15 mm) 3.6 µL (ID 0.15 mm)
200 mm Outlet Tubing (Transp.) Membrane 3.6 µL (ID 0.15 mm) 3.6 µL (ID 0.15 mm)
